Reports and dashboards / Reports and dashboards
Build a dashboard directly
Create a dashboard, add available widgets and business data, arrange the layout, and save it for reuse.
Select a screenshot to open the original image in a new tab. Organizations, names and records in the examples are Demo data; use the corresponding information for your own work.
Before you start
Sign in to Nexia. You can build a dashboard directly without starting an Agent conversation. Available widgets, source data, and organization selections depend on installed capabilities and your data access. A dashboard does not expand permission to read its sources.
Read the dashboard editor
The left side is the layout area and the right side is the widget editor. The example contains one announcements widget and a title field above it. The widget catalog, data-widget composer, and saved data widgets provide different starting points. Decide whether to choose an existing widget or compose one from business data.
Example: build a weekly review dashboard
Start with a question such as “Which work needs review this week?” If an accessible source provides the relevant date and status fields, narrow the scope with those conditions. Use a table for individual records or a supported aggregation for an overview. Choose widgets that each help answer a specific question.
Create a dashboard
Choose Create dashboard from the dashboard navigation. Start with a blank board. This opens an unsaved draft; it does not add an empty dashboard to My dashboards. Add and save your first change before leaving the draft.
Explore the widget catalog
Open the widget palette. In a global dashboard, select an App or NEXIA to browse its available widgets, or select All to browse the full catalog. You can also use the business-data composition option for a data-backed view. Read a widget’s purpose before placing it.
Add widgets

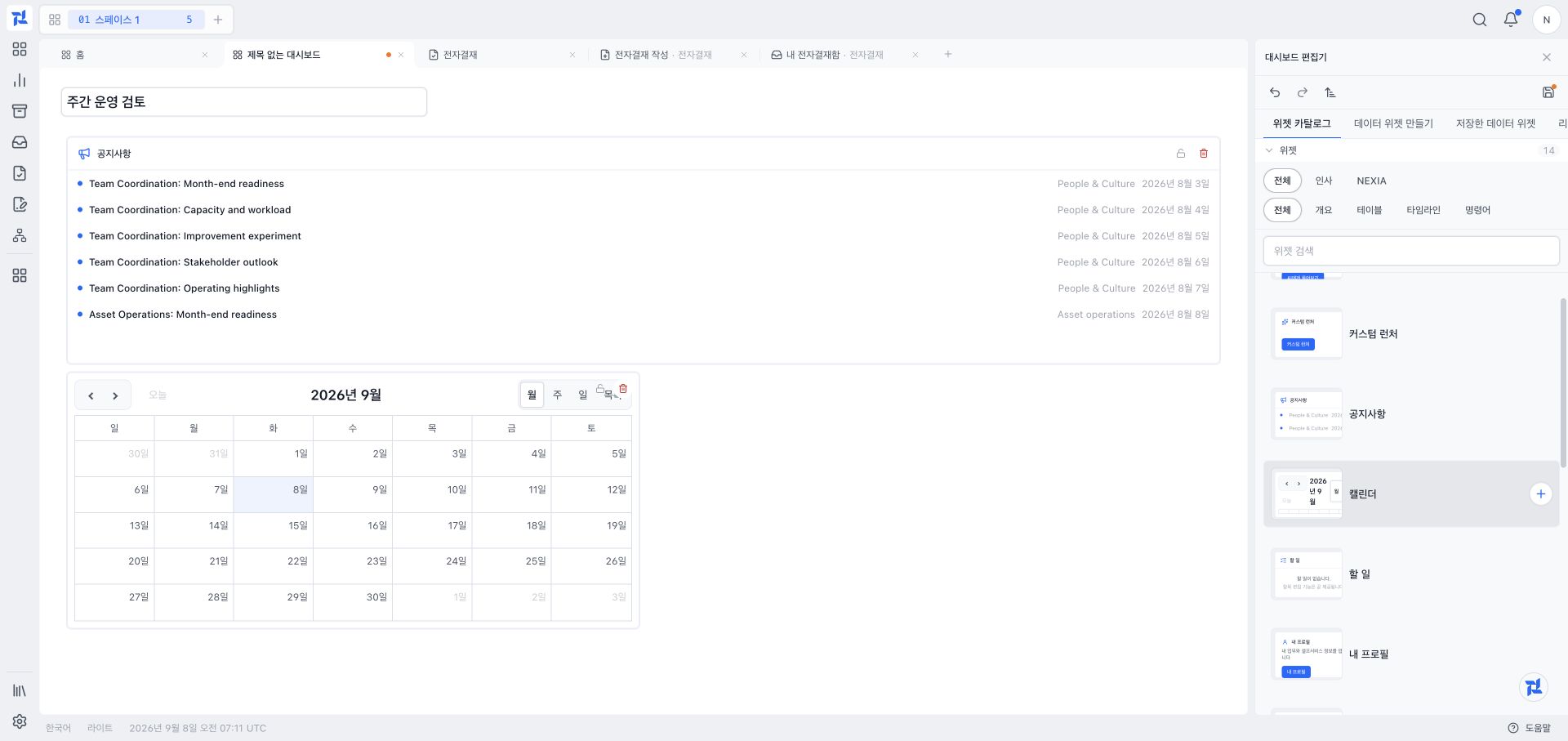

In Widget catalog, select Notices and Calendar, using the add control on each widget card. Enter Weekly operations review in the title field above the board. Notices provide announcements and Calendar provides dates; this first example does not require building a custom data query.
The title is above the board; the save icon is at the top of the editor on the right.
Choose standard widgets or business data
Save the Notices/Calendar example first to learn layout and reopening. Continue with data composition when you need individual business records or a calculation.
For a saved data view you can open, share, export, schedule, or reuse across dashboards, follow Reports. In the dashboard editor, select that saved report from the Reports tab when you are ready to place it.
| Desired result | Select first | Inspect in Preview |
|---|---|---|
| Individual records | Table and identifying name/status fields | Can each row be distinguished? |
| Record count | An available count calculation and metric | Are the counted records and filters correct? |
| Work by assignee | An assignee grouping and supported calculation | How are records without an assignee represented? |
| Trend over time | A date grouping and supported calculation | Is this creation date, due date or completion date? |
Field names and calculations depend on the source. An empty information-to-show section cannot produce a finished table widget. Select another readable source or ask your administrator whether the needed fields are available. Do not use an incomplete configuration as a successful data-widget example.

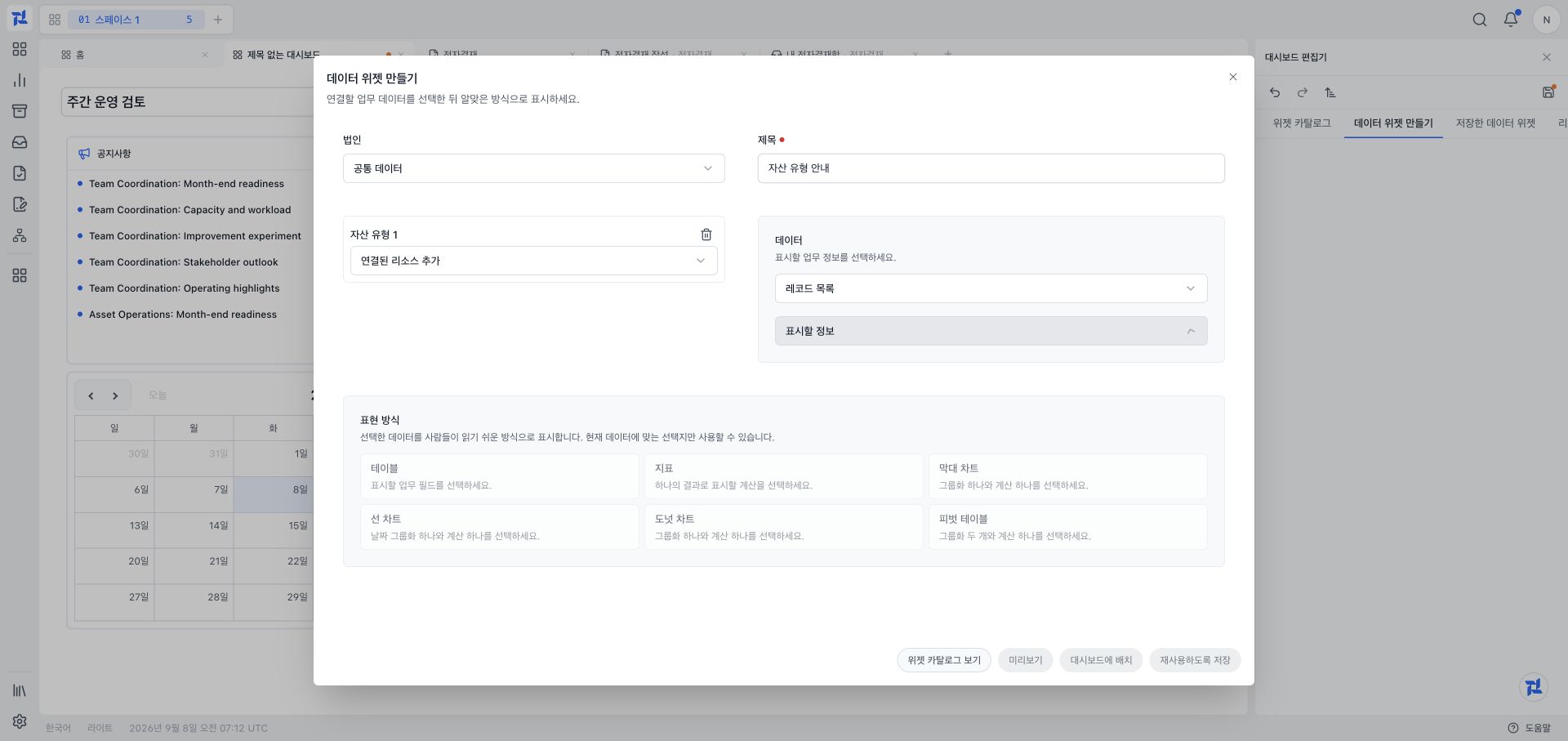

Choose business data
In the data composition surface, select an accessible source and the relevant Legal Entity when required. Connected sources are offered only through available relationships. If a source is absent, resolve access or availability first.
Configure fields, filters, groups, and calculations
Choose the fields needed for the result. Apply filters, grouping, and calculations supported by those fields. Review the meaning of totals and any grouping before using them to make a decision.
Choose a presentation
Select an offered presentation such as a table, metric, or chart. The available choices depend on the selected data; not every configuration supports every chart.
Preview and place the widget
Choose Preview and inspect the result. Review the scope, displayed fields, and totals. Enter a Widget title and choose Place on dashboard. Choose Save for reuse when you want to select the data widget again later. Saving a reusable widget stores its configuration separately from saving the dashboard.
Adjust positions and sizes
Choose Edit layout. Move and resize widgets, then save the layout. Review whether labels and key values remain readable at the intended size.
Save and name the dashboard
Choose the editor’s Save layout icon and wait for Dashboard created. The first save creates a persistent dashboard. The editor closes and the saved title and widgets remain visible. Saving a reusable data widget alone does not save this board.

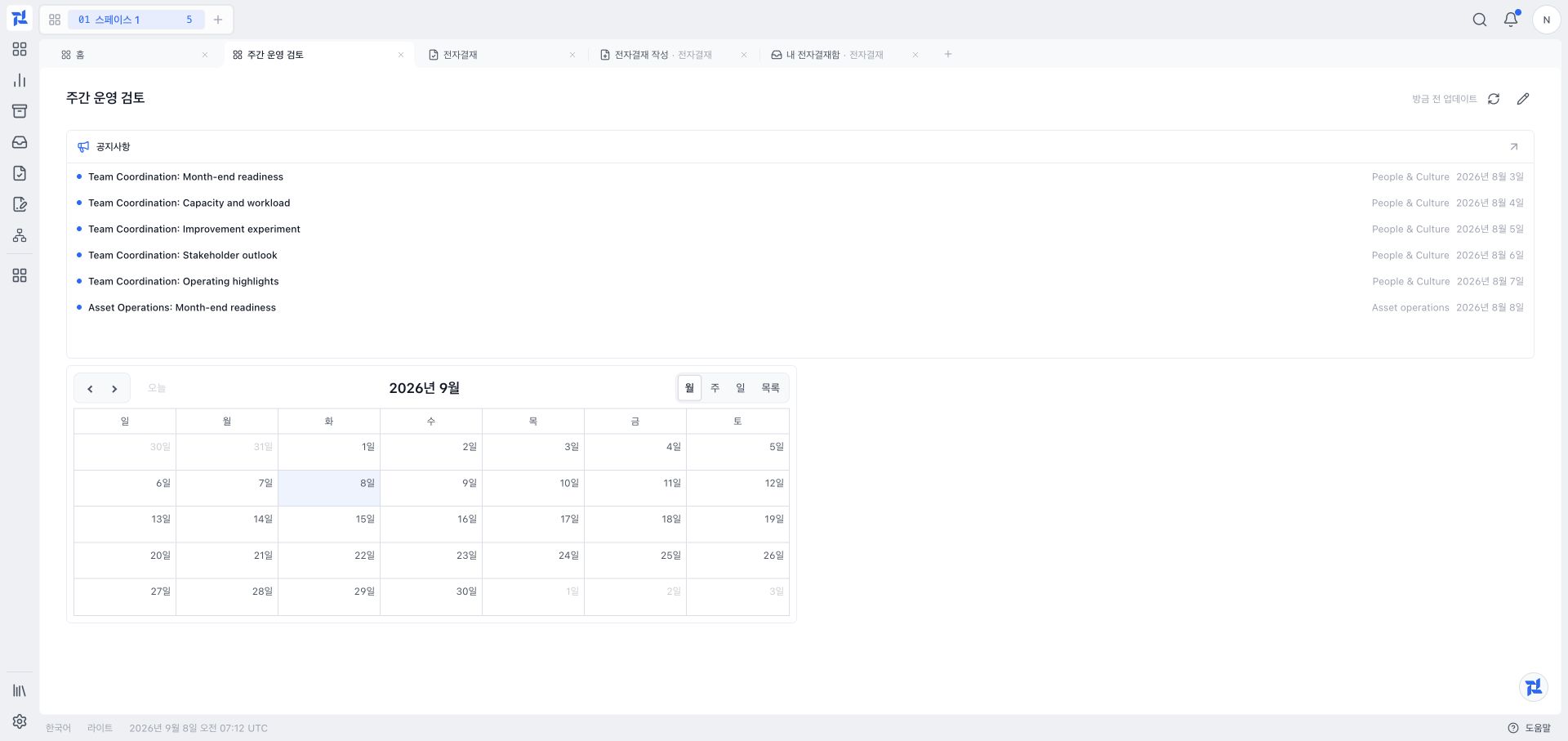

This is the board created from the two widgets above.

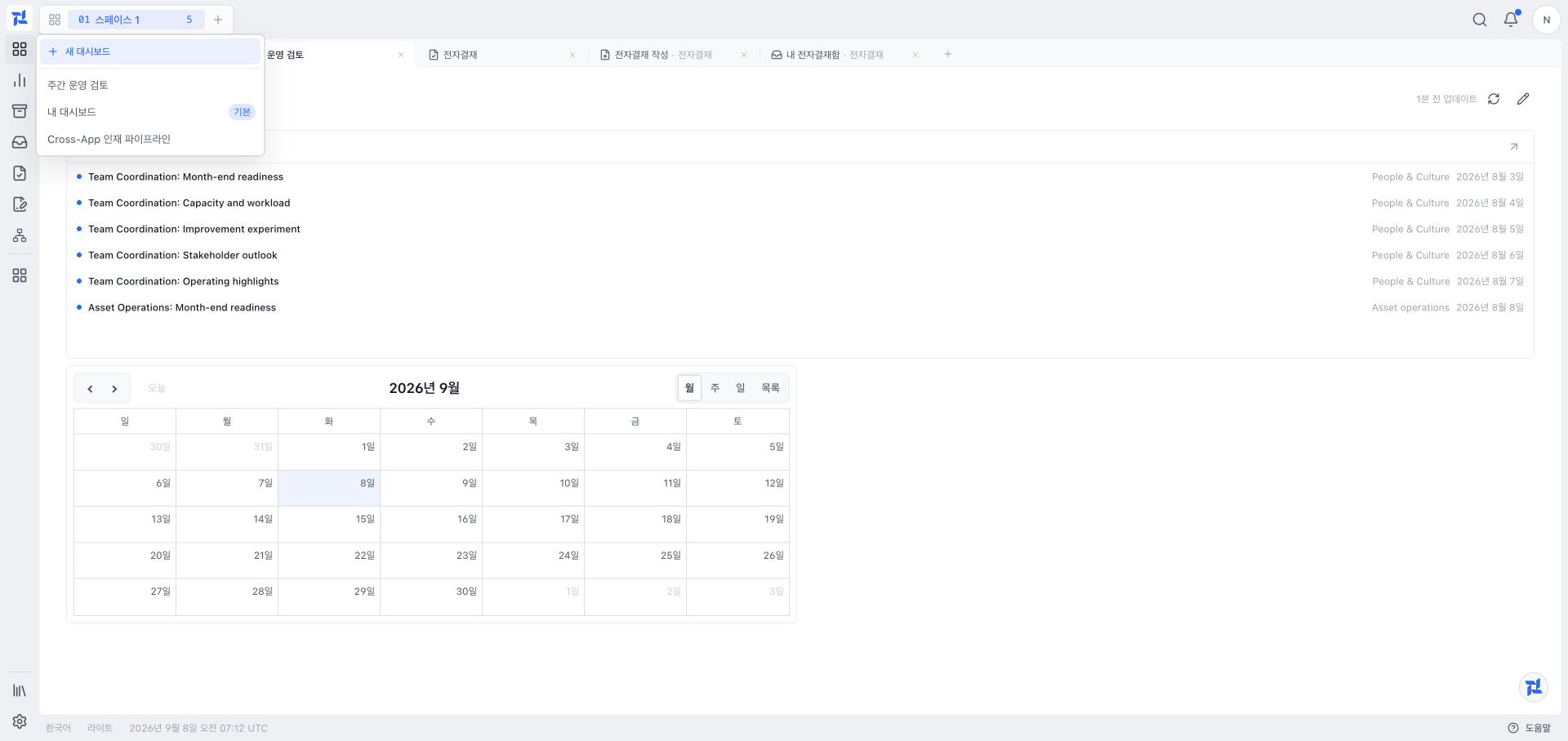

Open Dashboards from the left rail and select Weekly operations review from your saved items. Confirm that the same two widgets reopen.
Select the title you saved. Names of pre-existing Demo dashboards may appear in another language.
Set a default dashboard
Use Set as default on a saved dashboard. Confirm its default indicator. Set another default before trying to delete the current default dashboard.
The Default column in the management list distinguishes the Home default from each app default. Dashboards that are not defaults show —. You can also delete a saved dashboard from its actions menu. To delete the Home default, first choose another Home default. Deleting an app default restores the app-provided default screen.
Use an App-provided default
When an App offers a default dashboard, choose View app default dashboard to open it as a draft. Review it, save it, and select it as the App first screen if desired. Existing personal dashboards remain unchanged until you save and select the draft.
Recover an unavailable widget
Read the widget’s availability message. An App default widget without current access shows guidance instead of its data; after access is restored, reopen the dashboard to use it. A changed data composition may offer repair: update the source configuration, preview the result, and save the repair. If an owning app is unavailable, restore availability or choose a usable widget; repeatedly refreshing does not restore the app.
Read the preview before placing a widget
| Situation or review point | What to check and do |
|---|---|
| Find individual work items | Check that the table includes enough identifying fields to distinguish records. |
| Read totals or trends | Use supported calculations and groups; check the period, units, and included records. |
| The result is empty | Check scope, filters, and source access before concluding that there are no matching records. |
If something goes wrong
If creation fails, read the displayed reason, including any saved-dashboard limit. If preview fails, check fields, filters, source access, and organization. If saving fails, keep the board open and resolve the error before assuming it was retained.
